Gianneschi Pump CB 22-95 230V 01CB22G302

-3%

(0)

€ 1.122,40 € 1.088,73

iva inclusa

Code: MTO02716

quantity

Print

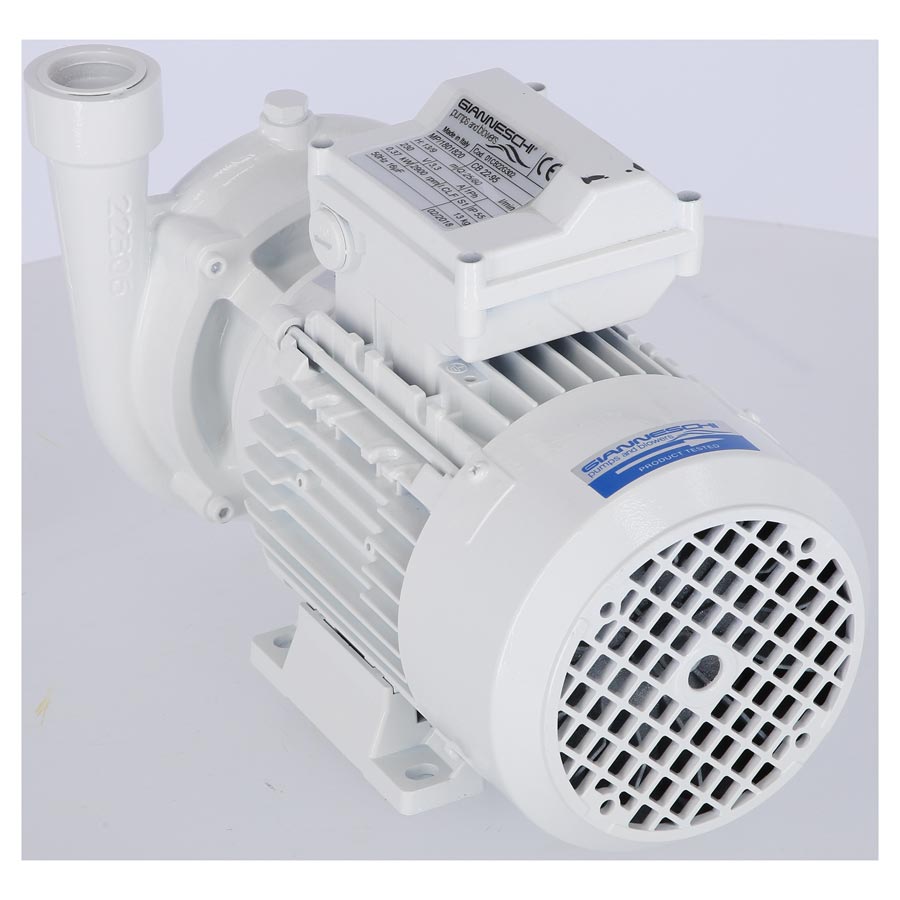

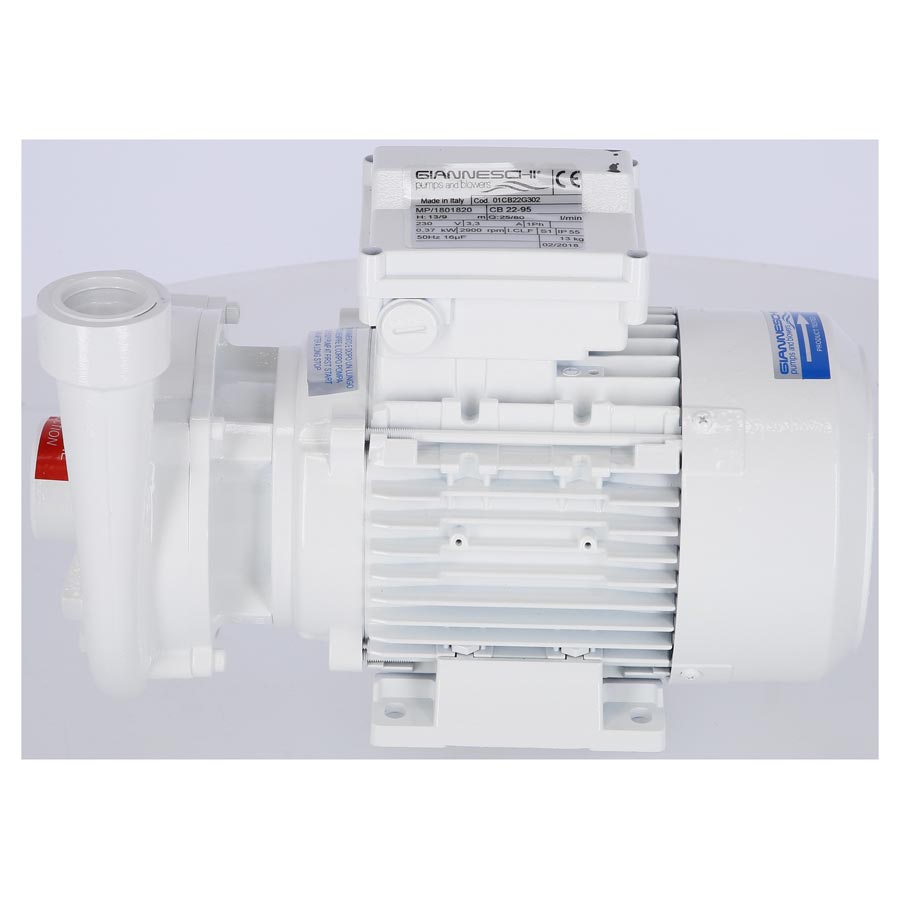

GIANNESCHI PUMP CB 22-95 230V Model: 01CB22G302

Gianneschi CB series pumps
Final Suction Pumps - Not self-priming.

Body and impeller in bronze - Shaft in stainless steel.

Typical applications: clear fresh / sea water distribution (capable of handling small suspended particles), refrigerant for air conditioning systems.
The AC versions can be used on continuous duty applications.

GIANNESCHI CB22-95
Voltage: 230 V.
Frequency: 50Hz
Power: 0.37 kW
Maximum output: 100 L / min @ 0.6 bar
Max pressure 1.3 bar @ 16 L / min
Inlet / Outlet: 1 ''
Dim.WxDxH: 300x160x161 mm
Weight: 13 kg
The pressures given are the total head converted into bar (10m = 1 bar).

60 Hz motors available on request.
