GLOMEX Avior VT300 TV antenna

AVIOR - OMNIDIRECTIONAL TV ANTENNA FOR DIGITAL TERRESTRIAL + FM RADIO - 24.5 DB

DIAMETER 100 MM - 10 M OF COAXIAL CABLE - 12 VDC - CONNECTOR V9144

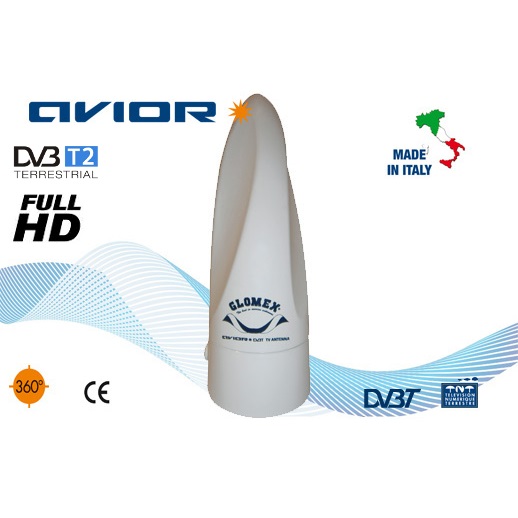

Avior is the new omnidirectional TV / RADIO FM antenna of the Glomex range, extremely reduced in size with a diameter of just 100 mm and a height of 210 mm, to receive analog-digital television signals and listen to the radio. Thanks to the new high performance and low noise figure amplifier, Avior is able to receive the signal from multiple directions at the same time and TV signals in horizontal and vertical polarization very effectively. In addition, the internal amplifier, coupled to the voltage inserter with 2 independent outputs for TV and radio (V9114PI-FM), allows to receive both VHF and UHF frequencies and FM frequencies with a single antenna. Avior can be easily installed on any type of boat, sail or motor, and can be combined with the VHF RA121 antenna, identical in size.

INSTALLATION:
- Sail boat
- Motorboat

TECHNICAL FEATURES

ANTENNA DIAMETER 100 mm (4 '')
ANTENNA HEIGHT 210 mm (8 '')
BASE DIAMETER 25 mm (1 '')
WEIGHT ANTENNA 250 g (8.81 oz)
RADOME MATERIAL UV resistant ASA
ANGLE OF RECEPTION 360 °

POLARIZATION Horizontal / Vertical
IMPEDANCE 75 ohms
FREQUENCY RANGE 40/890 MHz
GAIN AVERAGE 24.5 dB
NOISE FACTOR 1.7 dB
POWER CONSUPTION 20 mA
POWER SUPPLY 12 Vdc
TV SET MAX 1
TERMINATION F female
CONNECTOR SUPPLIED F male gold plated connector (V9144)
