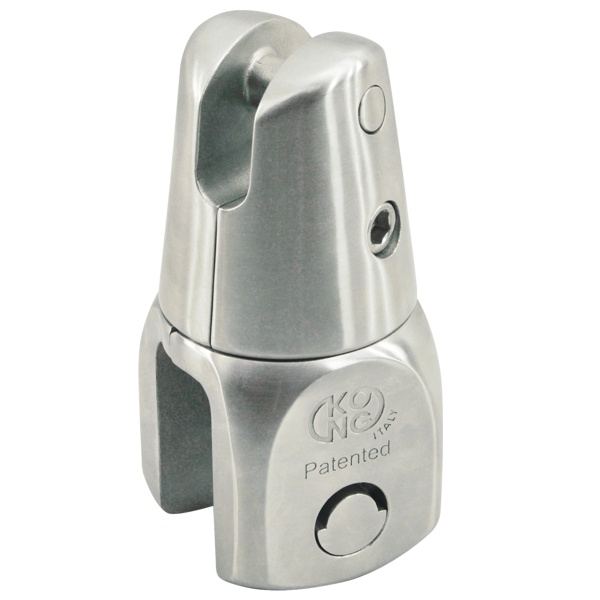

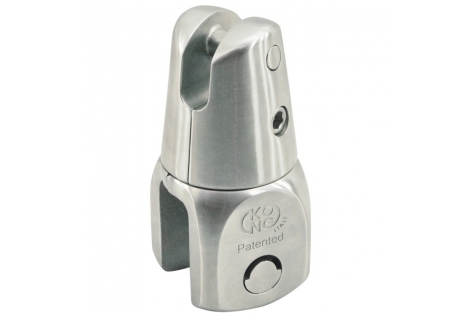

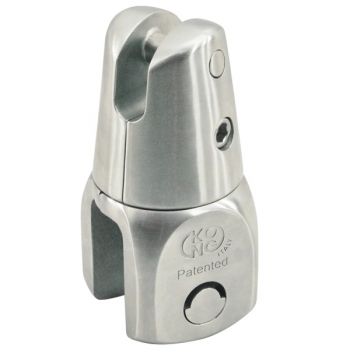

Kong Swivel Joint for Anchor Stainless Steel

-25%

starting from € 94,28 € 70,71

iva inclusa

Code	For chain D mm	A mm	B mm	C mm	D mm	And mm	F mm	Work load Kg	Breaking load Kg	Qt.	price
MTO00621-01	6/8	93	28	16	10	19	9	2500	850		€ 94.28 € 70.71 -25%
MTO00621-02	8/12	117	37	22	13	23	13	5000	2000		€ 170.00 € 127.50 -25%
MTO00621-03	12/14	155	66	35	18	30	17	9500	3000		€ 565.00 € 423.75 -25%
MTO00621-04	16/20	190	86	43	22	42	20	20000	5000		€ 1838.00 € 1378.50 -25%

Innovative joint for anchors in AISI 316 stainless steel, resistant and robust, it allows a 360 ° rotation on itself, guaranteeing a firm hold and more flexibility in the grip. The stainless steel joint from Kong Italia, a company that has been producing connectors for both boating and mountaineering since 1830, is supplied in various sizes and dimensions depending on the diameter of the chain rings to be used. In fact it is very important to choose the right connector in proportion to the maximum load allowed by the chain, which depends precisely on the diameter of its rings, and also to other parameters such as the weight of the anchor, or to the breaking loads of the other components of the system. anchor. The kit including the connector is also supplied with the relative Allen key in order to make it easier to fix and assemble.

Diameter	TO	B.	C.	D.	AND	F.	Vertical traction	Lateral traction	Weight
6/8	93	28	16	18	10	9	2500 kg	850 kg	240 gr
8/12	117	36	22	22	13	13	5000 kg	2000 kg	550 gr
12/13	155	66	35	30	17	17	9500 kg	3000 kg	2350 g

All length measurements are in mm

It is important to remember that the breaking loads of the anchoring system components must be arranged in decreasing order as shown in the figure: Bridge (A) - Winch attachments (B) - Chain (C) - Anchor joint (D) . The purpose of all this is to limit the damage caused by jamming, it is therefore advisable for the buyer to evaluate the system in question and choose the connector suitable for use.
