Lofrans SX4 Stainless Steel Windlass Round Base

-20%

starting from € 6.565,45 € 5.252,36

iva inclusa

Code	Template	Template	For chain D mm	Qt.	price
MTO02409-01	2300W 24V ccw	Basso Profilo	12mm ISO 4565 / 13mm DIN 766		€ 7634.27 € 6107.42 -20%
MTO02409-02	2300W 24V cw	Con Campana	12mm ISO 4565 / 13mm DIN 766		€ 7573.20 € 6058.56 -20%
MTO02409-03	2700W 24V ccw	Basso Profilo	12mm ISO 4565 / 13mm DIN 766		€ 8245.13 € 6596.10 -20%
MTO02409-04	2700W 24V cw	Con Campana	12mm ISO 4565 / 13mm DIN 766		€ 8244.98 € 6595.98 -20%
MTO02409-05	IDRAULICO - 8cc ccw	Basso Profilo	12mm ISO 4565 / 13mm DIN 766		€ 7328.95 € 5863.16 -20%
MTO02409-06	IDRAULICO - 8cc cw	Con Campana	12mm ISO 4565 / 13mm DIN 766		€ 6565.45 € 5252.36 -20%

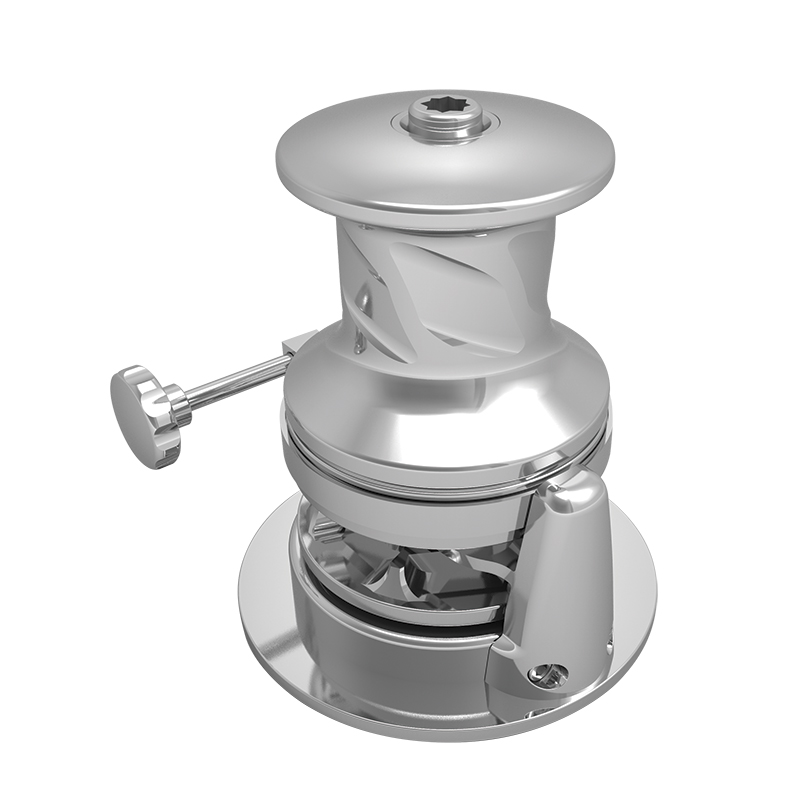

Lofrans SX4 Windlass - Vertical Windlass

Main features:

- Compact round base
- Construction in marine AISI 316L stainless steel

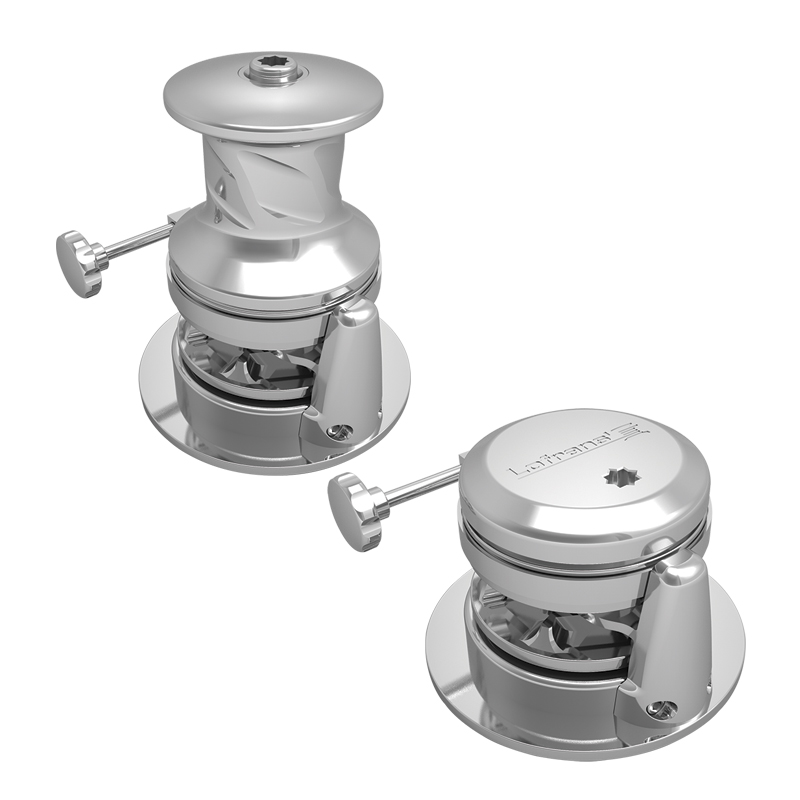

- With Bell or low profile
- Independent gypsy / gypsy and camapna operation
- Manual release of the chain
- Magnet and chain counter pre-installed as standard
- IP67 resistant electric motor
- Gearbox in anodized marine aluminum

Standard equipment:
- Double direction solenoid pack
- Gypsy handle for chain
- CD / instruction manual
- The chain tube, code 636313, is also available as an option

INSTRUCTIONS INSTALLATION MANUAL

** cw: The winch pulls clockwise
** cww: The winch pulls counterclockwise
