Vetus MT 72 wheelhouse for boats up to 11 meters

-35%

(0)

€ 1.959,20 € 1.273,48

iva inclusa

Code: MTO01178

quantity

Print

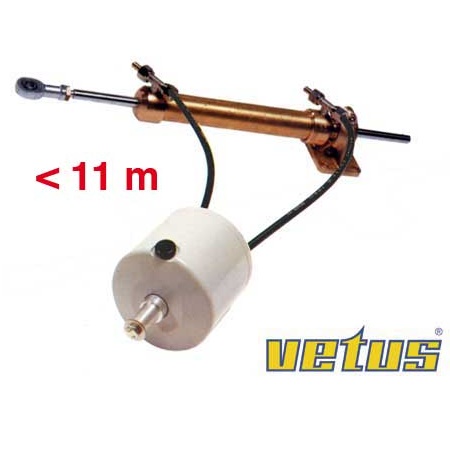

Hydraulic steering system Vetus MT 72 for boats up to 11 meters.

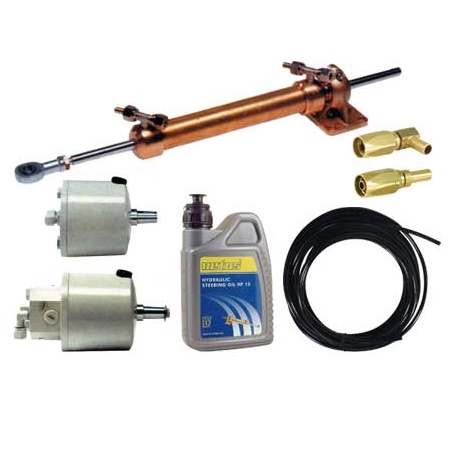

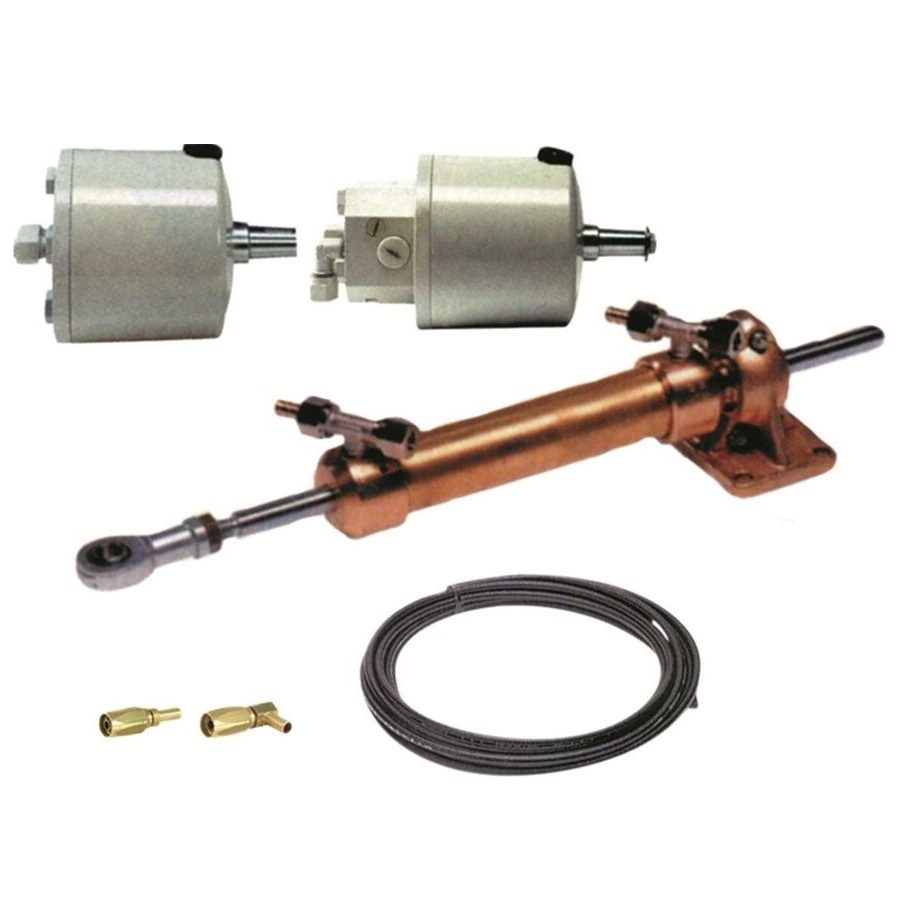

Assembly components and accessories are sold separately:
1 cylinder.
1 standard pump or 1 pump with non-return valve.
4 Straight or curved recoverable fittings.
Hydraulic hose from 5/16 to meter.
1 liter Vetus milk oil.

Maximum twisting moment 706 nm (= 72kgm)
Pressure 56 kg / cm2
Twisting moment at 35 ° and 56 kg / cm2 589 mm (= 60 kgm)
Cylinder stroke 225 mm.
Cylinder volume 146 cm3
Total rudder angle 70 °
Bar length 196 mm
Cylinder weight 3.8 kg
No. of wheel turns from port to starboard 7.3
Pump weight 3.7 Kg.
Dimensions of plastic pipes Ø 6x Ø 10 mm
copper or steel Ø 8x Ø 10
Number of pistons 5
