starting from € 1.068,40 € 747,88
iva inclusa
Code Template Construction Power W. For top Ø mm For chain D mm Qt. price
MTO01254-01 Basso Profilo Alluminio 500w 12V 10/12mm 6 mm
€ 1068.40 € 747.88 -30%
MTO01254-02 Con Campana Alluminio 500W 12V 10/12mm 6 mm
€ 1162.67 € 813.87 -30%
MTO01254-03 Basso Profilo Bronzo Cromato 500W 12V 10/12mm 6 mm
€ 1225.51 € 857.86 -30%
MTO01254-04 Basso Profilo Bronzo Cromato 500W 12V 12 mm 8 mm
€ 1225.51 € 857.86 -30%
MTO01254-05 Con Campana Bronzo Cromato 500W 12V 10/12 mm 6 mm
€ 1319.80 € 923.86 -30%
MTO01254-06 Con Campana Bronzo Cromato 500w 12v 12 mm 8 mm
€ 1319.80 € 923.86 -30%
MTO01254-07 Basso Profilo Bronzo Cromato 800w 12V 10/12mm 6 mm
€ 1351.24 € 945.86 -30%
MTO01254-08 Basso Profilo Bronzo Cromato 800W 12V 12 mm 8 mm
€ 1351.24 € 945.86 -30%
MTO01254-09 Con Campana Bronzo Cromato 800W 12V 10/12mm 6 mm
€ 1445.48 € 1011.84 -30%
MTO01254-10 Con Campana Bronzo Cromato 800W 12V 12 mm 8 mm
€ 1445.48 € 1011.84 -30%
MTO01254-11 Basso Profilo Bronzo Cromato 1000W 12V 12 mm 8 mm
€ 1539.76 € 1077.83 -30%
MTO01254-12 Con Campana Bronzo Cromato 1000W 12V 12 mm 8 mm
€ 1634.04 € 1143.83 -30%

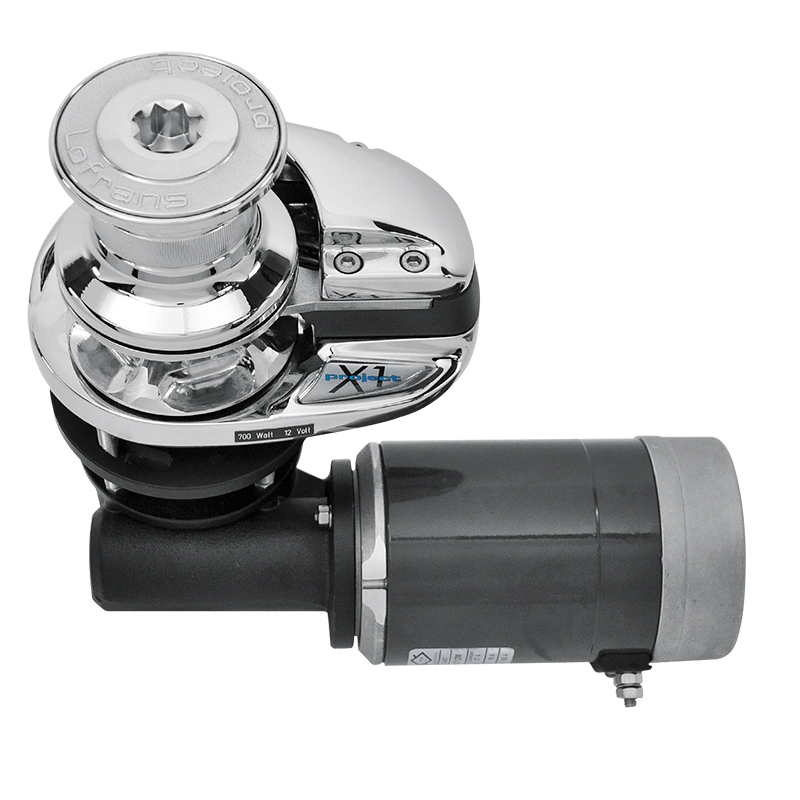

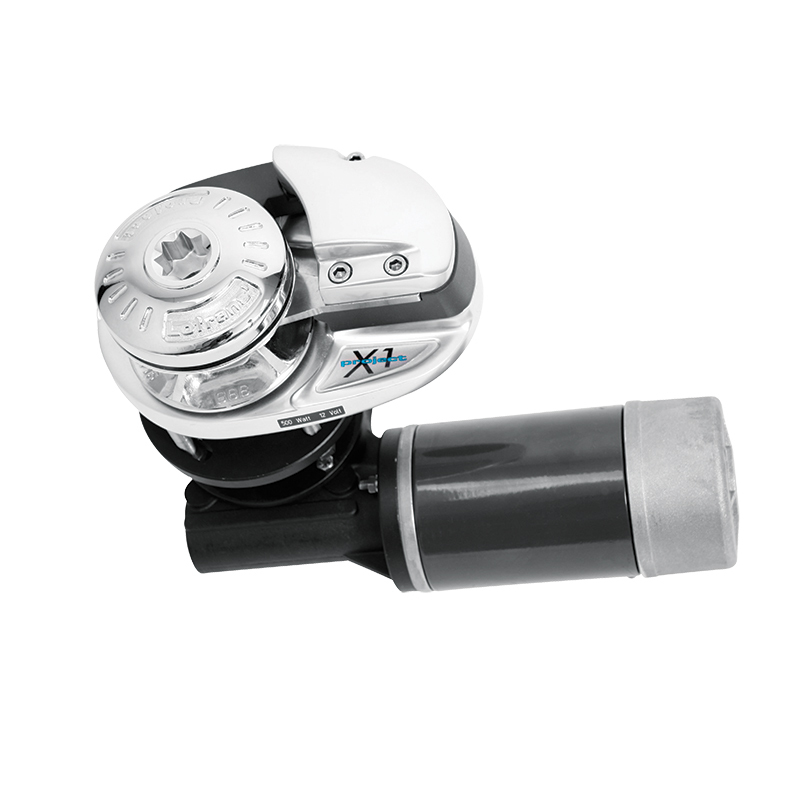

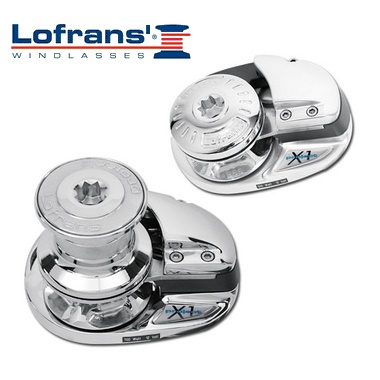

Vertical Lofrans Anchor Windlass with 12 Volt motor and 500 Watt, 800Watt and 1000Watt power, produced by the Lofrans house.

Main features:
- Barbotin / Gipsy and independent drum operation
- Possibility to use both the Top and the Chain
- Manual chain release
- Chain counter predisposition
- IP 66 motor
- Gearbox in Marine Anodized Aluminum
- 3 Years Warranty

The vertical winches of the "X" series are suitable for sailing and motor boats from 6m to 27m in length.

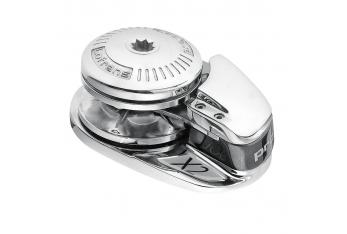

They have different drive configurations for each model. For the X2 and X3 winch there is a Plus version of AISI 316L stainless steel with mirror polishing that offers greater protection against corrosion.

The standard features of the X series winches are:
- Watertight stainless steel ball holding base (for better functionality and zero maintenance), which is a unique feature in the winch market.
- The clutch consists of two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid the use of keys and distribute the weight load correctly.
- The electric motor and gearbox are connected by a special coupling which is made by a socket for easy maintenance.
- There is a sensor in the base and a magnet in the gypsy so they can be connected to a chain counter.
- Manual operation so that the chain or rope can be recovered manually in the event of an electrical function failure.

Package Included:
Handle, Control Box, Base Gasket, Drilling Template, Fixing Screws and Pins and CD (manual)

BROWSE THE CATALOG PAGE X1
BROWSE THE LOFRANS COMPLETE CATALOG

For any further information please do not hesitate to contact us!
