CruzPro T35 Room Temperature 3 Areas

The CruzPro T35 is a tool for monitoring the temperature of three different zones such as refrigerator, engine room, sea water, internal or external temperature of the boat. Provides an accurate reading from -29 ° C (-20 ° F) to +60 ° C (+140 ° F).

It is possible to select a minimum and maximum temperature alarm for each zone. When activated the meter will emit an alarm at 85 dB and the display will flash. All settings, calibrations and alarm values are saved in a permanent memory.

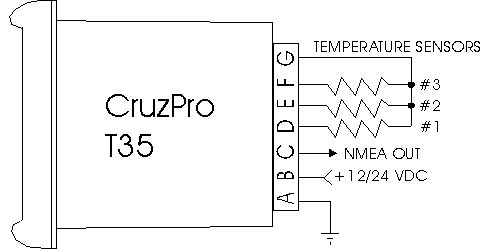

It is equipped with a fixed 12/24 Vdc backlight and is very easy to install. Uses standard 10 kOhm NTC sensors not included such as CruzPro BOL1 and TMT-1 temperature sensors.

The detected data can be sent via standard NMEA 0183 4800 bps to a NMEA repeater such as the CruzPro RP30, RP110, MaxRP110 and MaxVu110. It is also possible to set this port as an external alarm output.

Technical features

• Power supply voltage: 9.5 - 33 Vdc
• Display: 4 digits, with backlight
• Absorption: 0.018 amps nominal
• Data: -29 ° C (-20 ° F) to +60 ° C (+140 ° F)
• Resolution: +/- 1 ° C or ° F (user selectable)
• Input: Standard 10 kOhm NTC sensors, available for purchase separately
• Alarm: Integrated 85 dB, settable as minimum and maximum temperature for each zone
• Output: NMEA 0183 serial at 4800 bps ($ IIXDR). It can also be used as an external alarm output
• Embedding hole: 55 mm
