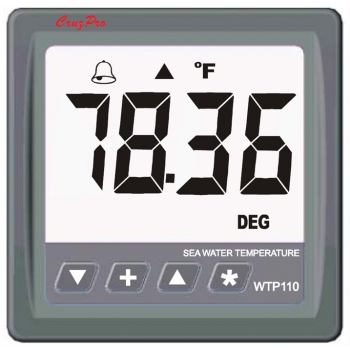

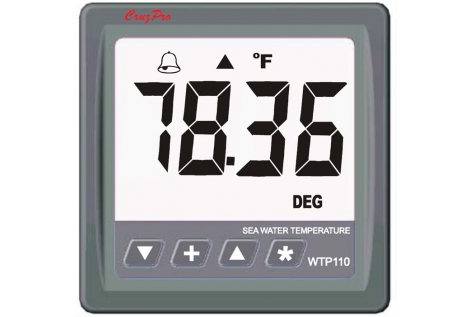

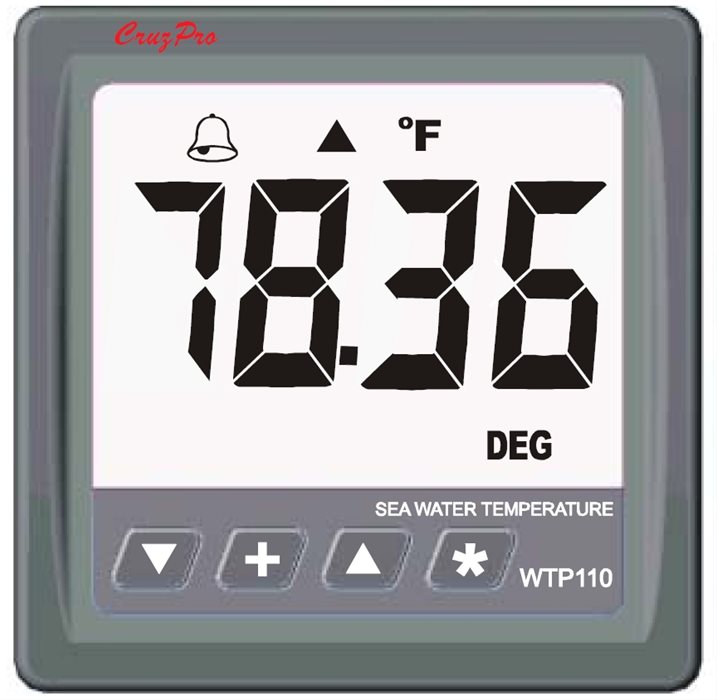

CruzPro WPT110 Seawater Thermometer

The CruzPro WPT110 is a digital thermometer for sea water temperature with a resolution of 0.01 ° C or ° F. Today's fishermen make use of precise studies aimed at determining the greater probability of the presence of fish as the water temperature varies. For maximum accuracy, the measured temperature can be calibrated from the front panel.

It is possible to set minimum / maximum temperature alarms and view the temperature trend if constant, increasing or decreasing. 5 levels of backlighting are selectable and all settings, calibrations and alarm values are saved in a permanent memory.

Uses standard 10 kOhm and 30 kOhm separately purchased sensors such as the CruzPro TMT-1 for detection. Displays temperature from 0.00 ° C (32.00 ° F) to 37.77 ° C (99.99 ° F) with accuracy to the hundredth of a degree. The unit of measurement can be selected from the front panel.

The detected ° C and ° F data can be sent via standard NMEA 0183 4800 bps to a NMEA repeater such as the CruzPro RP30, RP110, MaxRP110 and MaxVu110.

Technical features

• Power supply voltage: 9.5 - 33 Vdc
• Display: 4 digits, with 5 levels of backlighting
• Absorption: 0.045 amps nominal
• Data: 0.00 ° C (32.00 ° F) to 37.77 ° C (99.99 ° F)
• Resolution: +/- 0.01 ° C or ° F (user selectable)
• Input: Standard 10 kOhm or 30 kOhm NTC sensors, available for purchase separately
• Alarm: minimum and maximum temperature
• 4800 bps serial NMEA 0183 output ($ VWMTW, $ IIXDR)
• Dimensions: 110x110 mm
• Embedding hole: 55 mm
